15 tons of super strong tensile force
420 mm adjustable height range
Automatic adjustment locking system
Thickened lock hook design

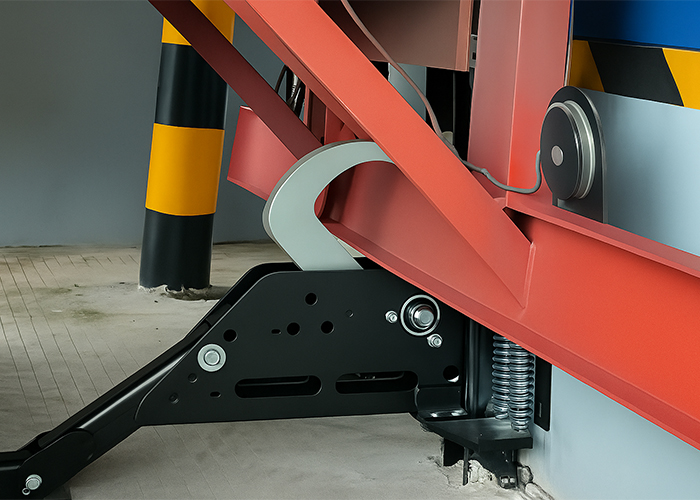

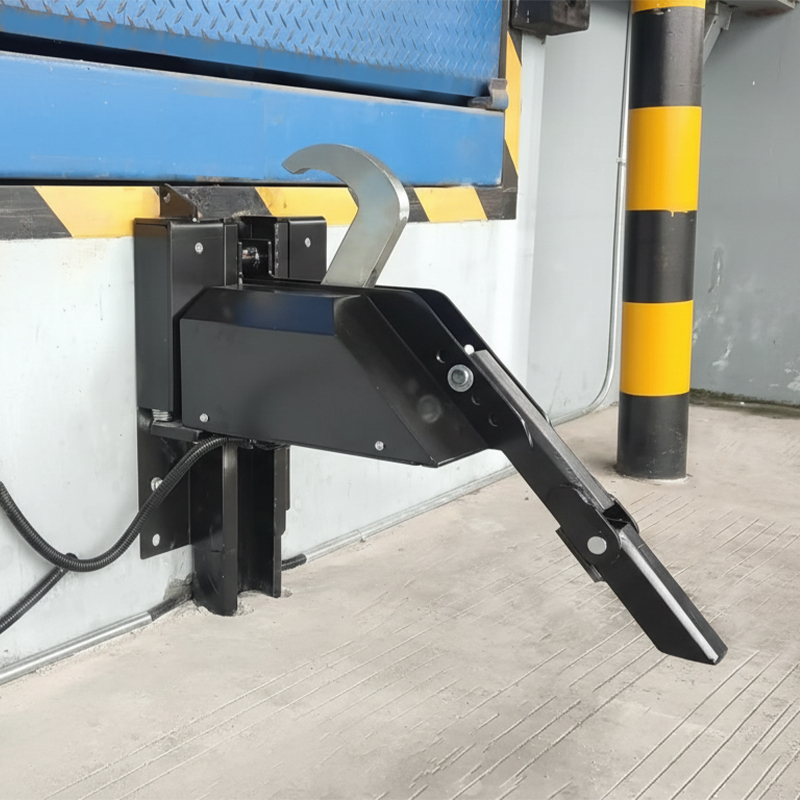

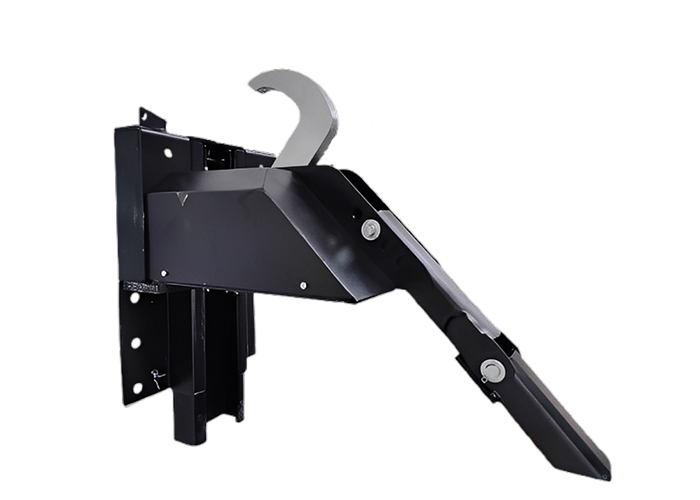

The vehicle lock adopts a high strength structural design, providing a stable tensile force of up to 15,000 kg to ensure that the truck remains in a safe position throughout the loading and unloading process.
Equipped with a 420mm adjustable height range, the rear anti-collision bar is suitable for various vehicle models, providing more precise and flexible locking. Its automatic adjustment locking system can automatically compensate for position changes according to the vehicle's up and down floating, maintaining a stable grasping effect.
The 30mm thickened lock hook combined with the spring-buffered steel frame structure further enhances the load-bearing capacity and durability, ensuring high-performance output even under high-frequency use during loading and unloading conditions.
Intelligent locking to prevent the vehicle from rolling back
Automatic alarm for misoperation

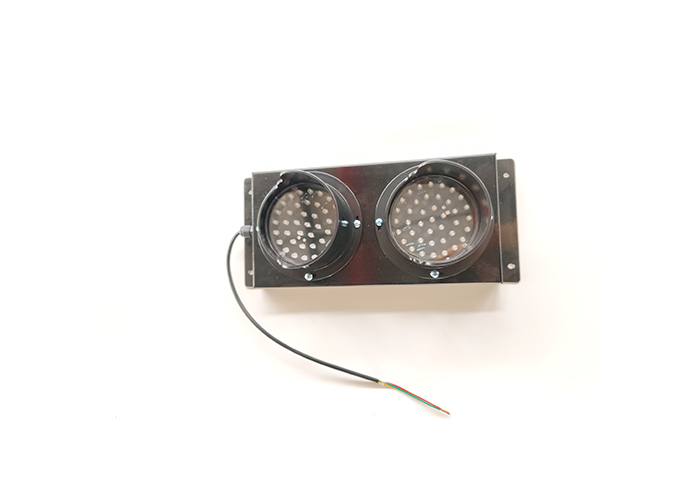

Clear traffic light indications
Anti-slip, anti-drift, anti-overturn
To ensure the safety of operators and the site, the vehicle lock integrates multiple protection mechanisms, including an intelligent anti-rolling locking system that can automatically compensate and lock when the vehicle undergoes slight movement.
If the vehicle position is abnormal or it is not at the effective locking point, the system will activate an automatic alarm reminder to prevent safety accidents caused by misoperation. Clear red and green signal light indications provide intuitive feedback for drivers and operators, making the loading and unloading process more orderly.
Comprehensive anti-slip, anti-rolling and anti-rollover configurations make the entire working environment more reliable and stable.
The structure is simple and easy to maintain
The external pipeline design makes maintenance convenient
High-quality components reduce the failure rate
High reliability and low maintenance cost
Structurally, it adopts a minimalist concept, reducing complex components and enhancing overall reliability. The external pipeline design makes daily inspection and maintenance more efficient and reduces the difficulty of maintenance.
At the same time, durable components are carefully selected to reduce wear and tear and the occurrence rate of failures, significantly lowering the later maintenance costs.
Whether in conventional warehousing scenarios or high-intensity logistics environments, it can maintain long-term stable operation, saving time and labor costs for enterprises.

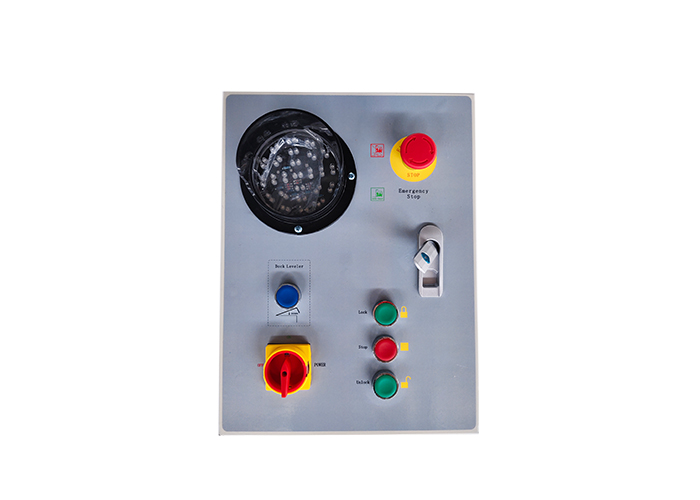

PLC Control System
Multi-Device Interlock (Dock Leveler / Dock Shelter / Door)
Optional Safety Add-Ons
Equipped with an advanced PLC control system, it makes the operation more intelligent, precise and safe. The car lock device can be linked with multiple devices such as platform adjustment plates, industrial doors, and photoelectric sensors to build a complete loading and unloading safety system.
It also supports multiple safety expansion configurations, such as pressure detection, photoelectric monitoring, travel protection, etc., allowing enterprises to flexibly upgrade the safety level according to on-site needs and create a more efficient and automated loading and unloading process.
