Against the backdrop of the continuous upgrading of modern industrial buildings, warehousing logistics and intelligent manufacturing, the performance requirements for industrial doors are getting higher and higher. It should not only be fast, safe and energy-saving, but also have good environmental adaptability.
As one of the key materials for industrial doors, PVC tarpaulin plays an irreplaceable role in a variety of products such as rapid rolling shutter doors, cold storage doors, anti-collision free doors, large hangar doors, and loading and unloading door seals, thanks to its excellent flexibility, weather resistance and functional expandability.
This article will provide a comprehensive interpretation of the application of PVC tarpaulin in the industrial door industry.
From material properties, structural functions, typical product scenarios to future development trends, it provides in-depth references for industry procurement, engineering contractors and enterprise decision-makers.
PVC tarpaulin is made by compounding high-strength polyester fiber base fabric with PVC coating. The perfect combination of PVC resin and various additives endows PVC fabric with excellent properties such as strong UV resistance and anti-aging.
It can remain flexible, non-brittle and non-deformable within the range of -30℃ to +70℃.
Industrial doors need to withstand the folding, stretching and impact loads caused by frequent opening and closing.
The base fabric weaving structure and external coating of PVC fabric endow it with:
High tensile strength
Tear resistance
Impact resistance
It is highly suitable as a curtain material for high-frequency or fast-running doors.
The surface of the PVC tarpaulin is waterproof, with a dense coating that does not absorb water, effectively resisting dust, water and oil stains.
After flame retardant treatment, it can reach the B1/B2 fire resistance grade, meeting the safety requirements of most industrial buildings.
Pvc-coated fabric can be customized according to requirements
Customized thickness (0.6mm - 3.0mm)
Customized color
Make composite insulation materials
Reinforced grid fibers
It can even enhance functions such as light transmission, heat insulation, anti-static, and low-temperature cold resistance.
Rapid doors are the most widely used category of industrial doors with PVC tarpaulins. Including: PVC servo rapid door, zipper rapid door, accumulation rapid door, cold storage rapid door.

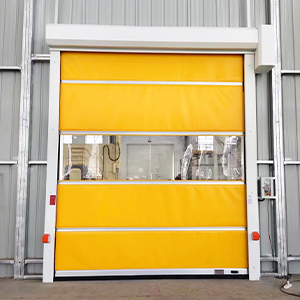

The door curtain of the YUOU PVC rapid door usually adopts 1.0mm thick coated fabric and has the following advantages:
The soft PVC door curtain can maintain a straight line and stability during high-speed operation, reducing friction and wear.
Multiple colors such as yellow, blue, gray and orange can be selected to enhance recognition.
The transparent PVC window enhances the safety of the operation area and facilitates the passage and observation of forklifts and personnel.
Such as insect-proof, anti-static, windproof, heat insulation, moisture-proof, food-grade materials, etc.
Therefore, PVC rapid doors are widely used in food factories, electronic workshops, logistics warehouses, clean rooms and commercial buildings.

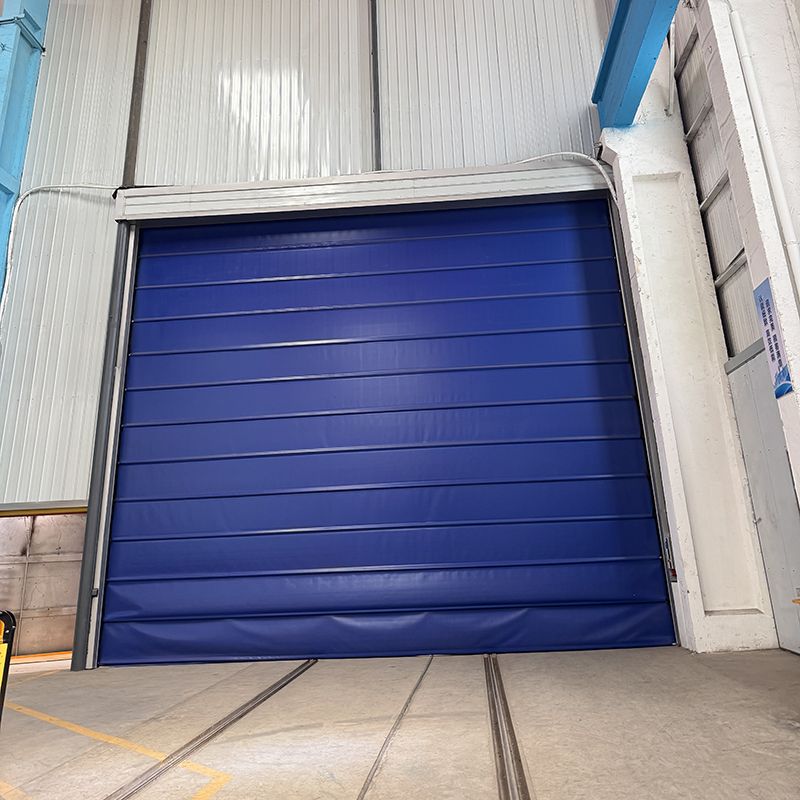

The stacked rapid door rises in a stacked manner, which is more stable than the roller shutter type. The soft PVC tarpaulin can be stacked in multiple layers. And it won't be damaged even with frequent folding. Its flexibility and tear resistance are both strong enough.
PVC door curtains are lighter in weight and won't be too heavy when made into larger sizes. Make the structure of the rapid door more stable.
The fabric mega door is made of a large area of multi-layer PVC fabric combined with a steel structure.
Features include:
The PVC fabric is thin and light. The flexible door also contains a steel structure inside, making this door lighter while having strong wind resistance. It can withstand wind pressure of 8 to 12 levels and is very suitable for large door openings, such as:
Aircraft hangar
Manufacturing plants for large ships and other equipment
The PVC door curtain can automatically return to its original shape after being hit and will not affect its continued use.
The soft and lightweight PVC fabric takes up very little space when folded. Suitable for hangars with limited space around the door opening.
The lightweight door body enables it to accept larger sizes. The common door opening sizes of hangar doors can all be used to make flexible hangar doors.
The door seal is a key sealing device in the logistics, warehousing and loading/unloading area.
Most door seals use highly wear-resistant PVC-coated fabric as the outer material, which is a very important application scenario for PVC tarpaulins.
The door seal curtain sheet is a position that forklifts and trucks repeatedly come into contact with. The wear resistance of PVC fabric can ensure that it will not crack after long-term use.
The door seal is exposed outdoors all year round. The PVC material does not absorb water, does not mold and does not fade.
The slats continuously deform under compression, while PVC can remain soft for a long time.
When the door seal curtain slats are damaged, only partial replacement is required, and the maintenance cost for enterprises is relatively low.
The steel structure combined with PVC tarpaulin is suitable for most vehicle types and most loading and unloading scenarios.
All-pvc structure, filled with gas inside, soft and durable, with stronger air tightness. Suitable for high-frequency logistics warehouses.
The surface of the sponge is covered with PVC fabric to enhance its water resistance and wear resistance.
Waterproof, moisture-proof, mold-proof, dust-proof and oil-proof
The surface is smooth and easy to clean
Food-grade PVC material is optional
Meet hygiene standards such as HACCP and GMP.
Excellent thermal insulation and cold insulation performance
It can be used as the main material for cold chain rapid doors
The door seal has an excellent sealing effect, reducing the loss of cold air
It can significantly reduce energy consumption.
PVC fabric has the property of corrosion resistance
It can resist oil mist, dust and moisture
High strength, suitable for large industrial scenarios
It is applicable to heavy industries such as steel, mechanical processing and chemical engineering.
Adding materials with different functions such as insulation cotton, aluminum foil and glass fiber can enhance performance in various aspects.
Integrate: In PVC door curtains
Photoelectric identification
Safety stripes
Embedded transparent layer
Conductive fiber (anti-static
Enhance the safety of PVC doors during operation. And further enhance production efficiency.
Develop low-VOC and recyclable PVC materials. Meet the green building standards. Implement the requirements of green development and sustainable development.
The demand for flexible doors in large openings such as aviation, logistics, and heavy industry is continuously increasing, and the performance of PVC fabric will be further enhanced.
PVC tarpaulin is one of the core materials in the industrial door industry. With its high strength, wear resistance, flexibility, weather resistance, customizability and other characteristics. It has demonstrated outstanding application value in fields such as rapid rolling shutter doors, rapid accumulation doors, hangar doors, and door sealing systems.
With the development of intelligent manufacturing and green buildings, PVC tarpaulins will continue to evolve in the industrial door field, bringing safer, more energy-efficient and more efficient industry solutions.
